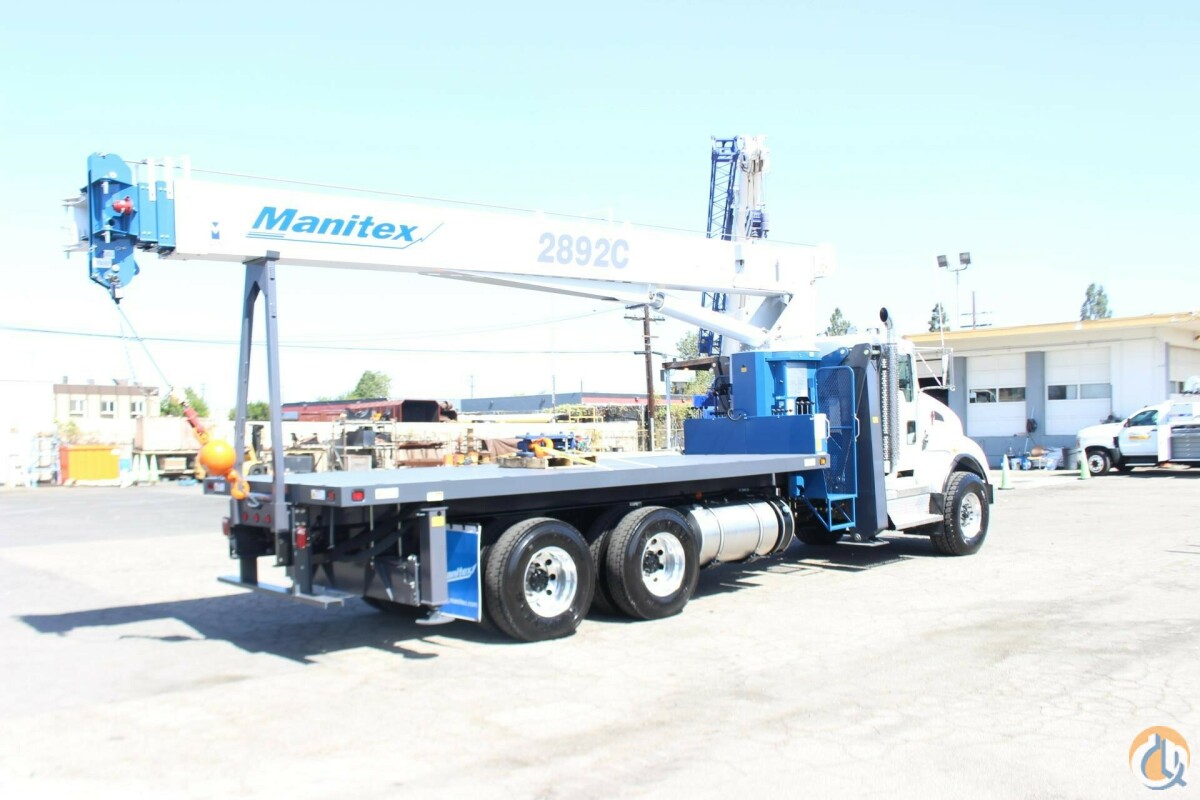

2023 Manitex 2892 C Boom Truck Crane
Coastline Equipment Crane Division
Neil Goodale: 916-440-8090
Last Updated: 28 May 2023
Neil Goodale: 916-440-8090
Last Updated: 28 May 2023
Price: Inquire
Location: Sacramento, California, United States
Year: 2023
Capacity: 0.00
Condition: New
Unit #: 109944
Capacity: 0.00
Condition: New
Unit #: 109944
MANITEX 2892C
28 TON CRANE
Standard features:
92’ Four-Section Telescopic Boom, LMI Radio ATB, 2 speed hoist with grooved drum, 7 ton hook and ball, 3 load sheave quick reeve boom head, Externally wired anti-two block with lockout, boom hoist cylinder, system pressure gauge, 372 ° non continuous rotation, removable boom rest, engine start/stop, operators service/parts manual, boom length and angle indicators, electronic throttle, foot throttle, bubble level, signal horn, 300’ 9/16” rotation resistant wire rope, 70 gallon reservoir with suction strainer and ball valve, pedestal, turret rotation bearing and swing system, dual operator control stations, load moment indicator- audio/visual alert with shutoff, audible outrigger stabilizer motion alarm, A-Frame Link Type front outriggers (22’4” spread width), out and down rear stabilizers (13’7” spread), 3 section hydraulic gear pump- counterclockwise rotation is standard, sub frame for 20' bed, outrigger monitoring system for verification only.
Additional Options Included:
• 1 piece 26’jib
• 20’ Steel Bed with 1/8” thick Steel Thread Plate
• 3 Section Vane Pump is required with an automatic transmission – Clockwise Rotation
• Hotshot PTO
• Heavy Duty Hydraulic Reservoir Chassis Mounted
• 15 ton 1-sheave quick reeve block
• Front center stabilizer
• Control valve for operation of single stabilizer Required w/FBS
• Aluminum toolbox (48” L x 24” W x 24” H)
MOUNTED ON 2023 KENWORTH T880
Mounted on a 2023 Kenworth T880 with a MX-13 455 HP diesel engine, Fuller FRO16210C 10 Speed Transmission, PACCAR FX-20, 20,000 lbs. front axle, Dual Meritor MP40 40,000 lb. rear axle, Full set Alcoa polished aluminum wheels, Single 80 gallon fuel tank, Heater and air conditioning with defrosters, full instrumentation, AM/FM/CD/WB/USB/MP3 with Bluetooth radio, Air Horn, and unit is painted with Dupont Imron Elite paint
28 TON CRANE
Standard features:
92’ Four-Section Telescopic Boom, LMI Radio ATB, 2 speed hoist with grooved drum, 7 ton hook and ball, 3 load sheave quick reeve boom head, Externally wired anti-two block with lockout, boom hoist cylinder, system pressure gauge, 372 ° non continuous rotation, removable boom rest, engine start/stop, operators service/parts manual, boom length and angle indicators, electronic throttle, foot throttle, bubble level, signal horn, 300’ 9/16” rotation resistant wire rope, 70 gallon reservoir with suction strainer and ball valve, pedestal, turret rotation bearing and swing system, dual operator control stations, load moment indicator- audio/visual alert with shutoff, audible outrigger stabilizer motion alarm, A-Frame Link Type front outriggers (22’4” spread width), out and down rear stabilizers (13’7” spread), 3 section hydraulic gear pump- counterclockwise rotation is standard, sub frame for 20' bed, outrigger monitoring system for verification only.
Additional Options Included:
• 1 piece 26’jib
• 20’ Steel Bed with 1/8” thick Steel Thread Plate
• 3 Section Vane Pump is required with an automatic transmission – Clockwise Rotation
• Hotshot PTO
• Heavy Duty Hydraulic Reservoir Chassis Mounted
• 15 ton 1-sheave quick reeve block
• Front center stabilizer
• Control valve for operation of single stabilizer Required w/FBS
• Aluminum toolbox (48” L x 24” W x 24” H)
MOUNTED ON 2023 KENWORTH T880
Mounted on a 2023 Kenworth T880 with a MX-13 455 HP diesel engine, Fuller FRO16210C 10 Speed Transmission, PACCAR FX-20, 20,000 lbs. front axle, Dual Meritor MP40 40,000 lb. rear axle, Full set Alcoa polished aluminum wheels, Single 80 gallon fuel tank, Heater and air conditioning with defrosters, full instrumentation, AM/FM/CD/WB/USB/MP3 with Bluetooth radio, Air Horn, and unit is painted with Dupont Imron Elite paint
