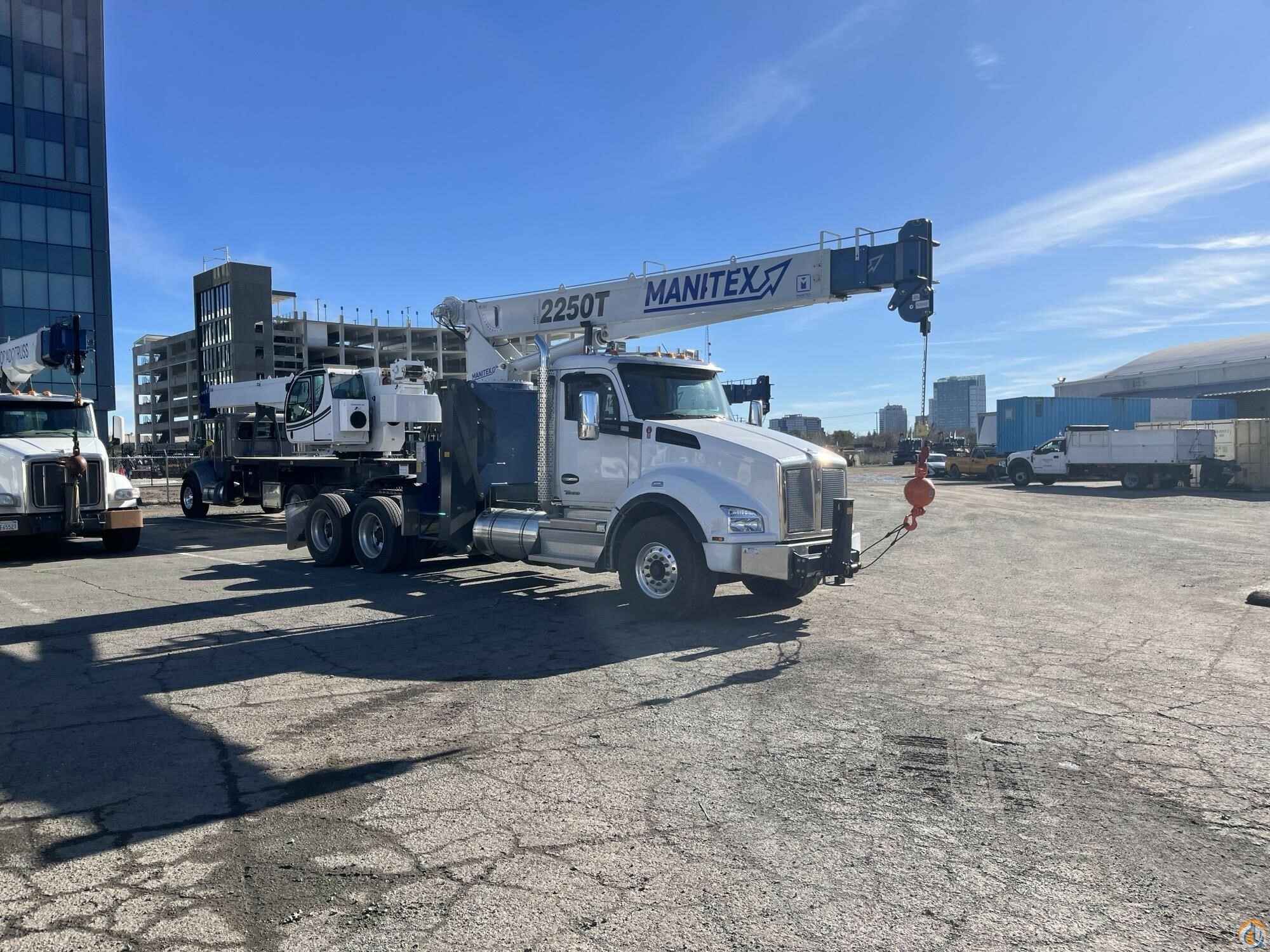

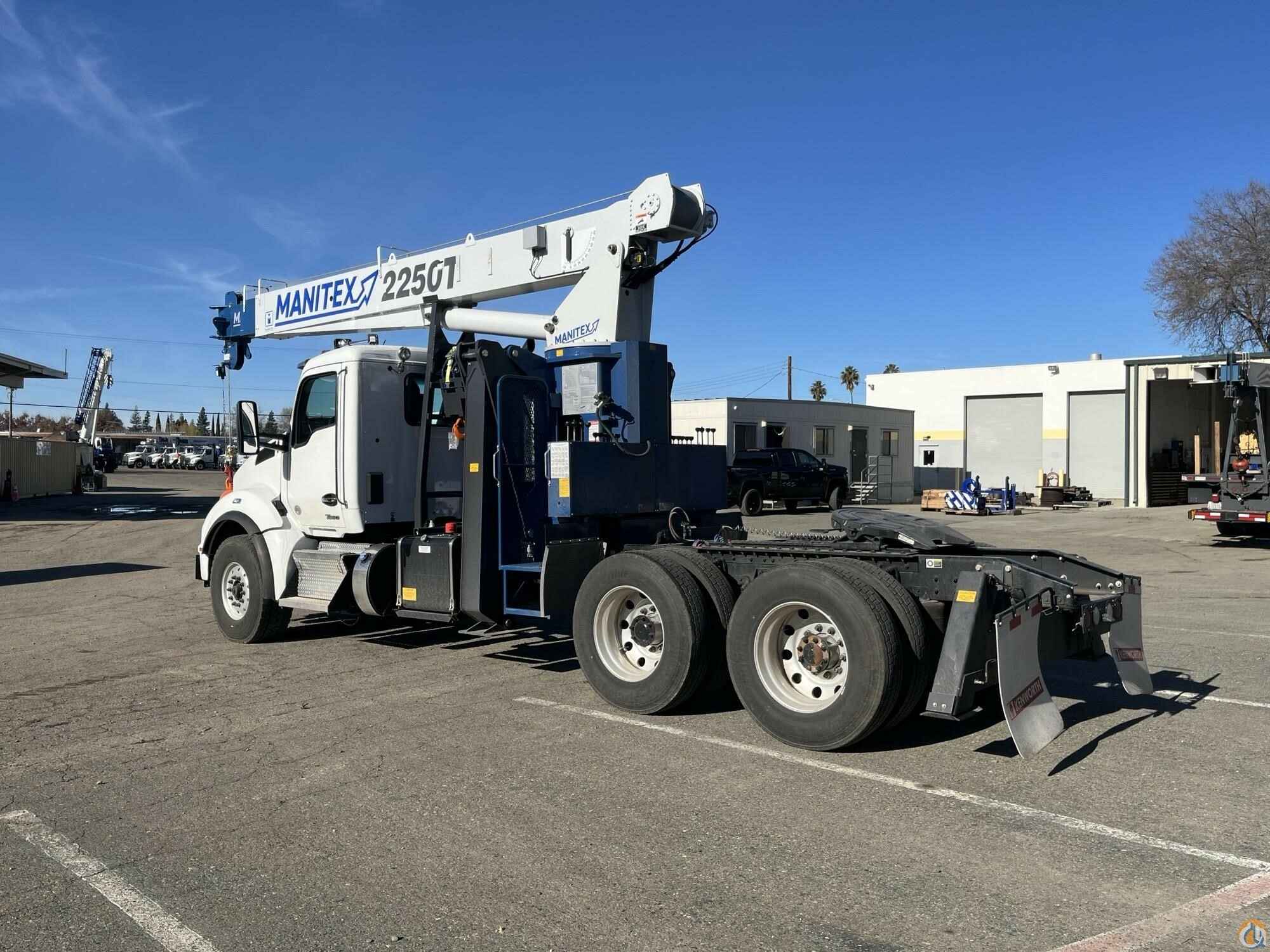

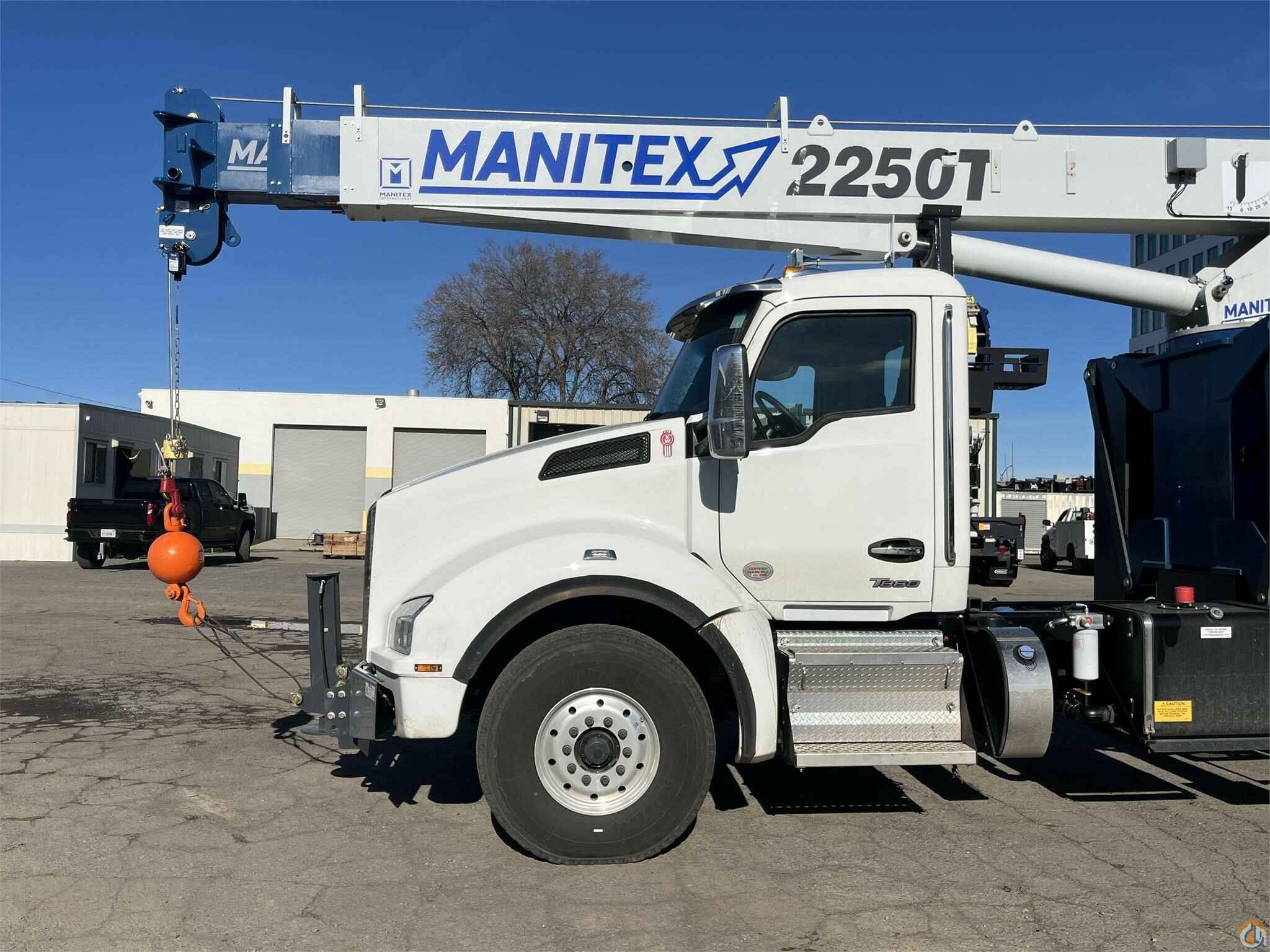

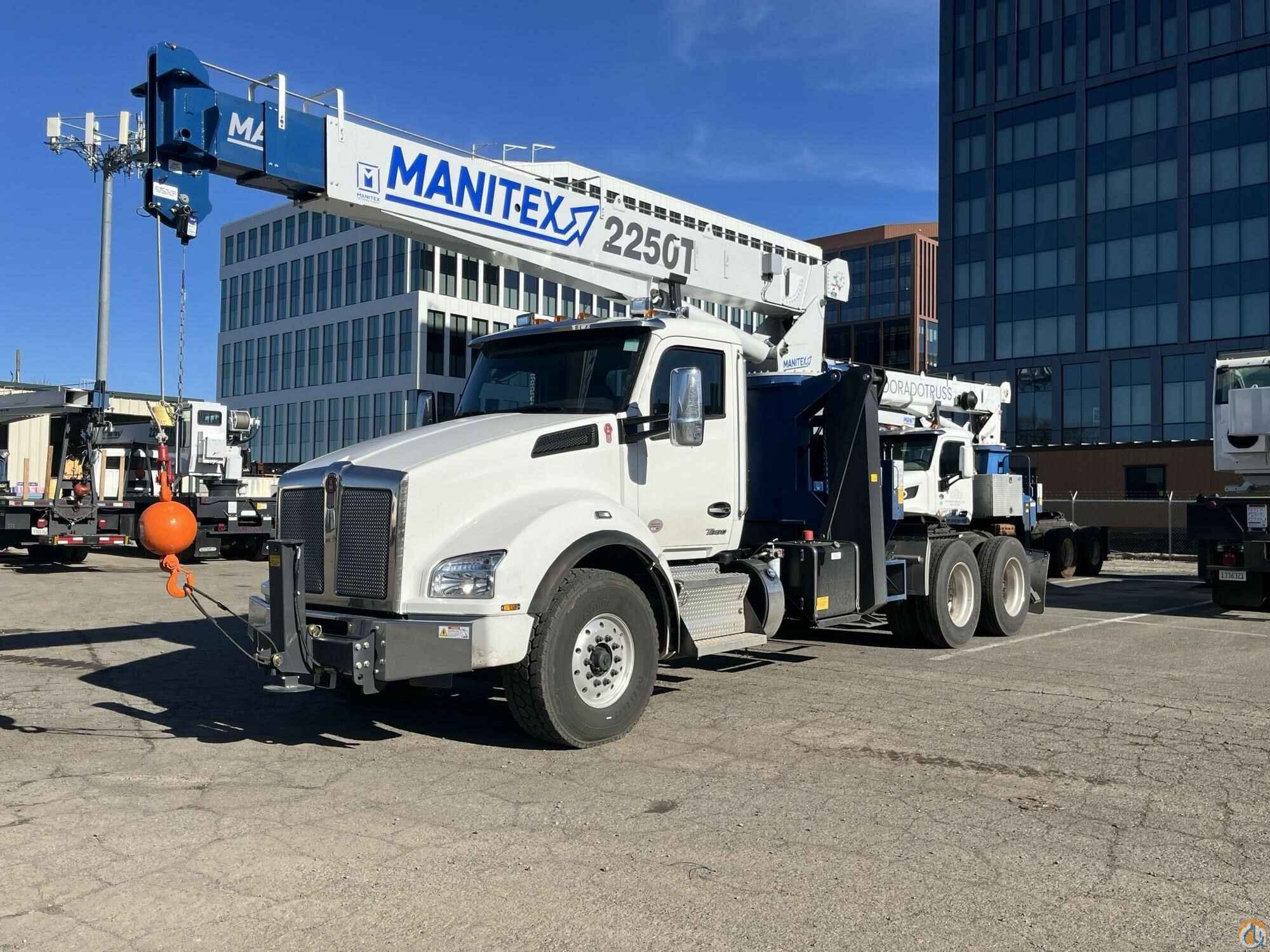

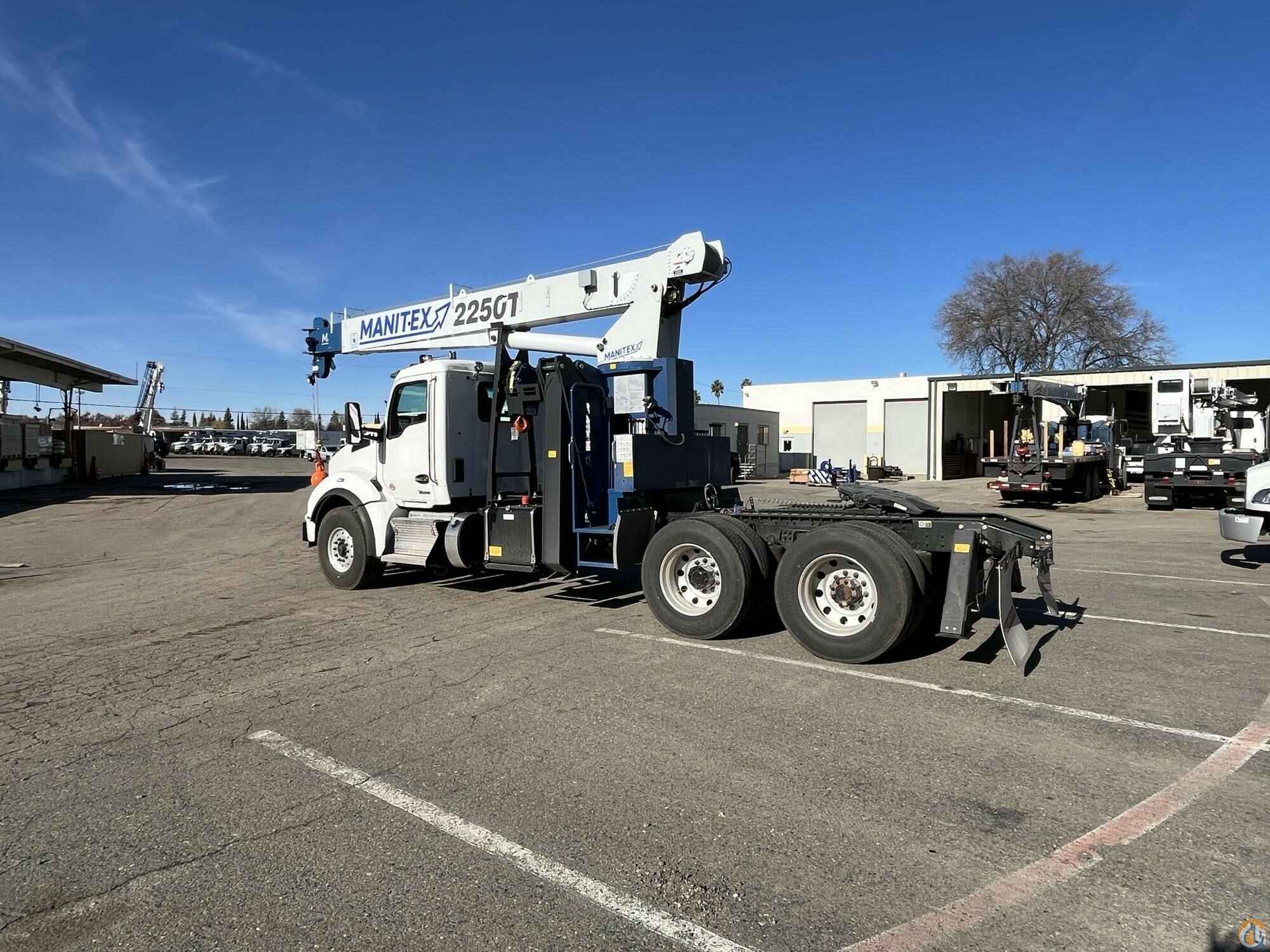

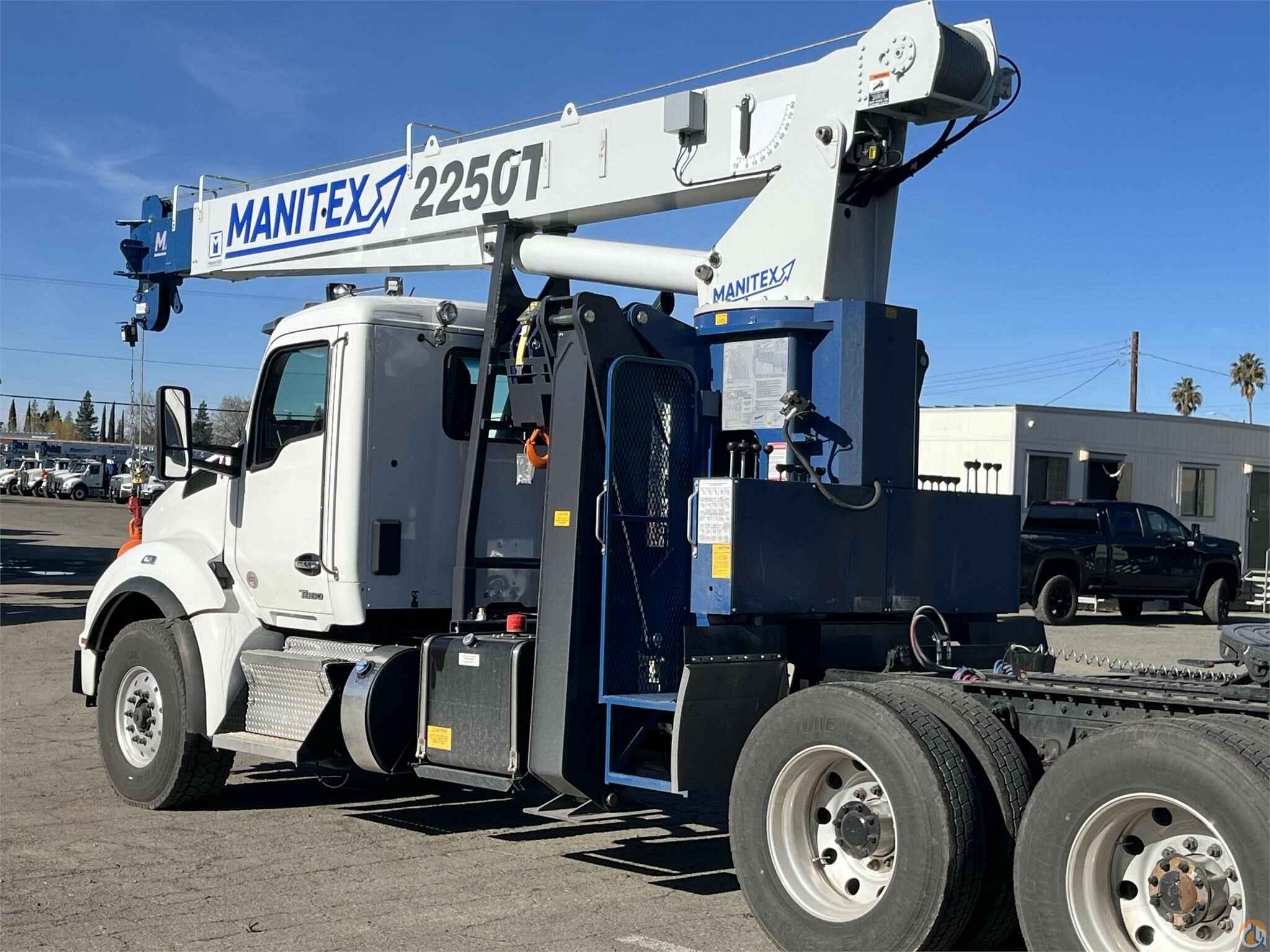

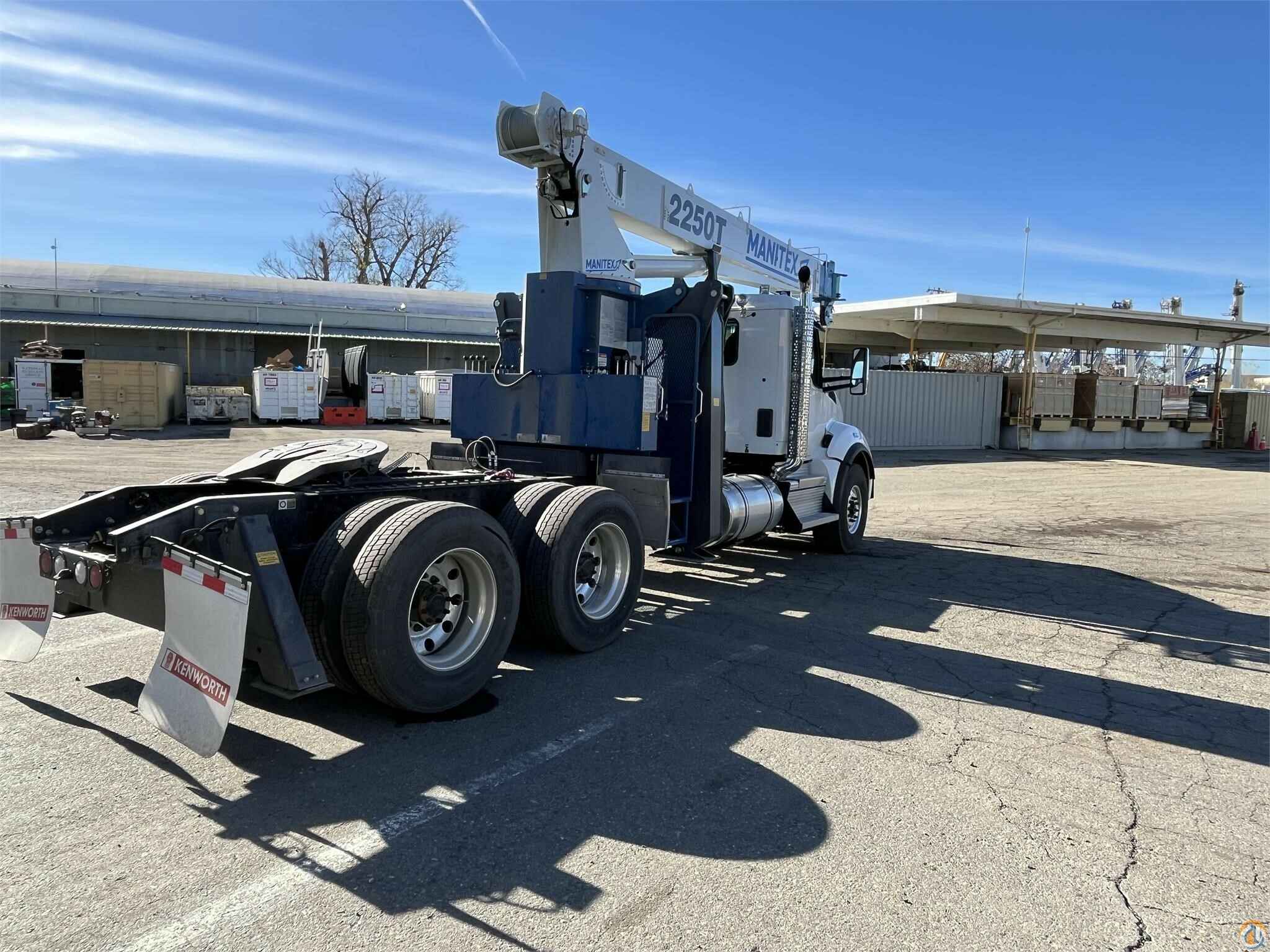

MANITEX 2250T
Standard features:
50’ Three-Section Telescopic Boom LMI, 2 speed hoist w/grooved drum, 7 ton hook and ball. 3- load sheave quick reeve boom head. Externally Wired anti-two block w/lockout, Boom hoist cylinder. System pressure gauge, 372° Non Continuous rotation, Dual Operator Control Stations, Removable boom rest, Engine start/stop, Operators service/parts manuals, Boom length and angle indicators, Electronic Throttle, Foot Throttle, 300’of 9/16” EIPS IWRC Wire Rope, 70 gallon reservoir w/suction strainer and ball valve, Pedestal, Turret, rotation bearing and swing system, Audible Outrigger Motion Alarm, Audio Capacity Alert w/Shutoff, A-frame Rear Stabilizers, Outrigger Monitor system for verification only, Subframe for 22’ Bed, 3-Section Hydraulic Pump-Counterclockwise Rotation is standard, signal horn.
Additional Options Included:
• Radio Anti-Two Block
• Tractor Mount Installation
• Tractor Mount Rear A-frame Stabilizers in lieu of standard
• Chassis Mounted Hydraulic Reservoir in lieu of standard
• Boom Rest for Tractor Mounted Cranes with Load Block Storage Option
• 3 Vane Pump Counter Clockwise Rotation
• Rotation Resistant Rope in lieu of standard
• 15 Ton 1-Sheave Quick Reeve Block – 9/16 Rope
• Front Center Stabilizer
• Mounting -Front Center Stabilizer
• Control valve for operation of single stabilizer
• Aluminum Tool Box (36” L x 24” W x 24” H) Chassis Mount

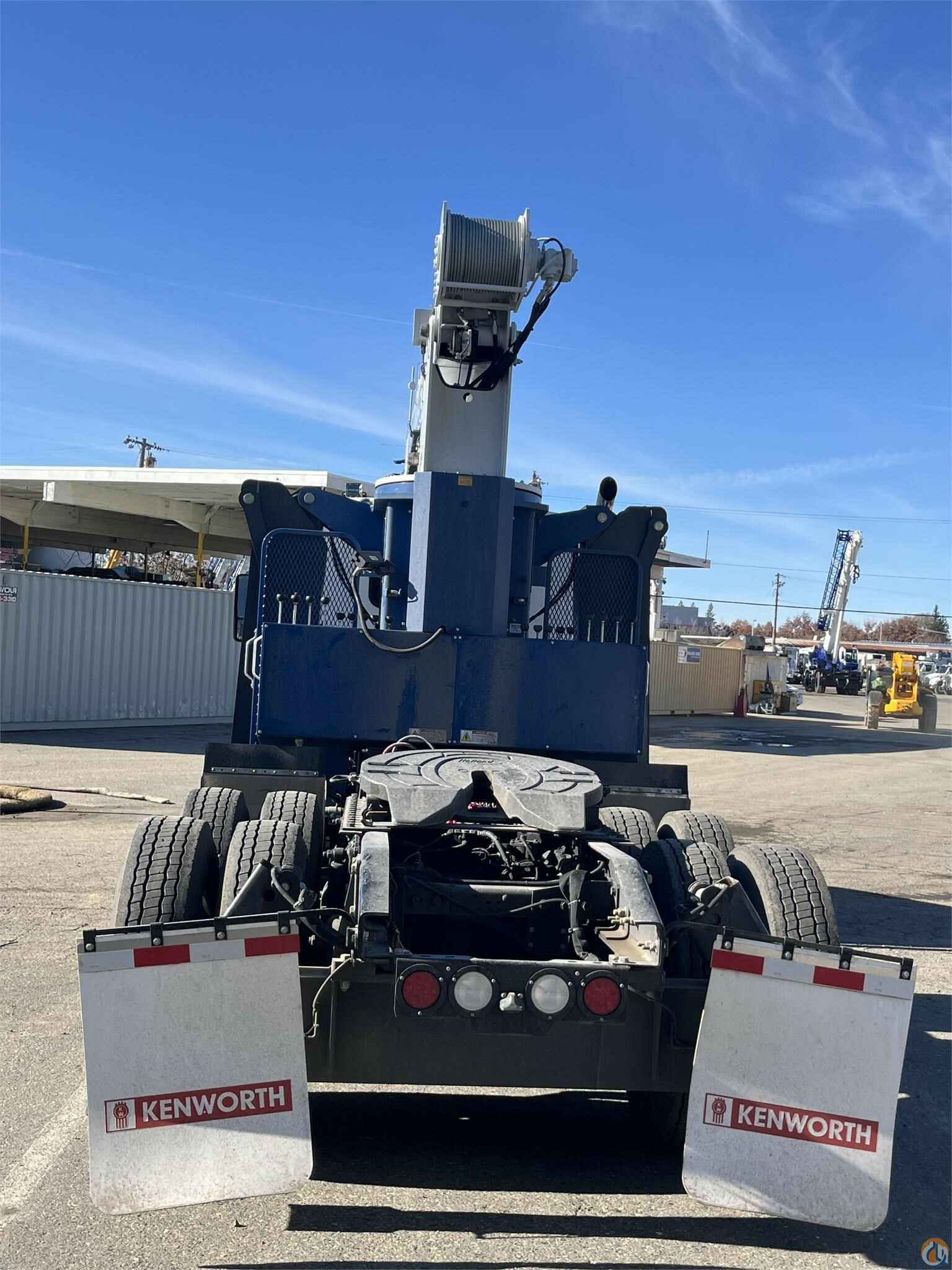

MOUNTED ON 2023 KENWORTH T880
Mounted on a 2023 Kenworth T880 tractor chassis with a MX-13 525 HP diesel engine, 13-speed RTLO18913A Eaton Fuller Transmission, Dana Spicer 22,000 lb. front axle, Meritor RT46-160 46,000 lb. rear axle, Full set of Alcoa polished wheels, Holland FW35 Fifth Wheel Top Plate, Hendrickson Haulmaax HMX460 46,000 lb. 54” Axel Space 60K creep rating, Single Aluminum 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Sterling Gray, AM/FM/WB/USB/MP3 /CD Bluetooth Phone and audio radio, Air Horn mounted under cab, Dual heated mirrors, Stainless steel sunvisor, Halogen headlights and unit is painted Axalta Two Stage White.
