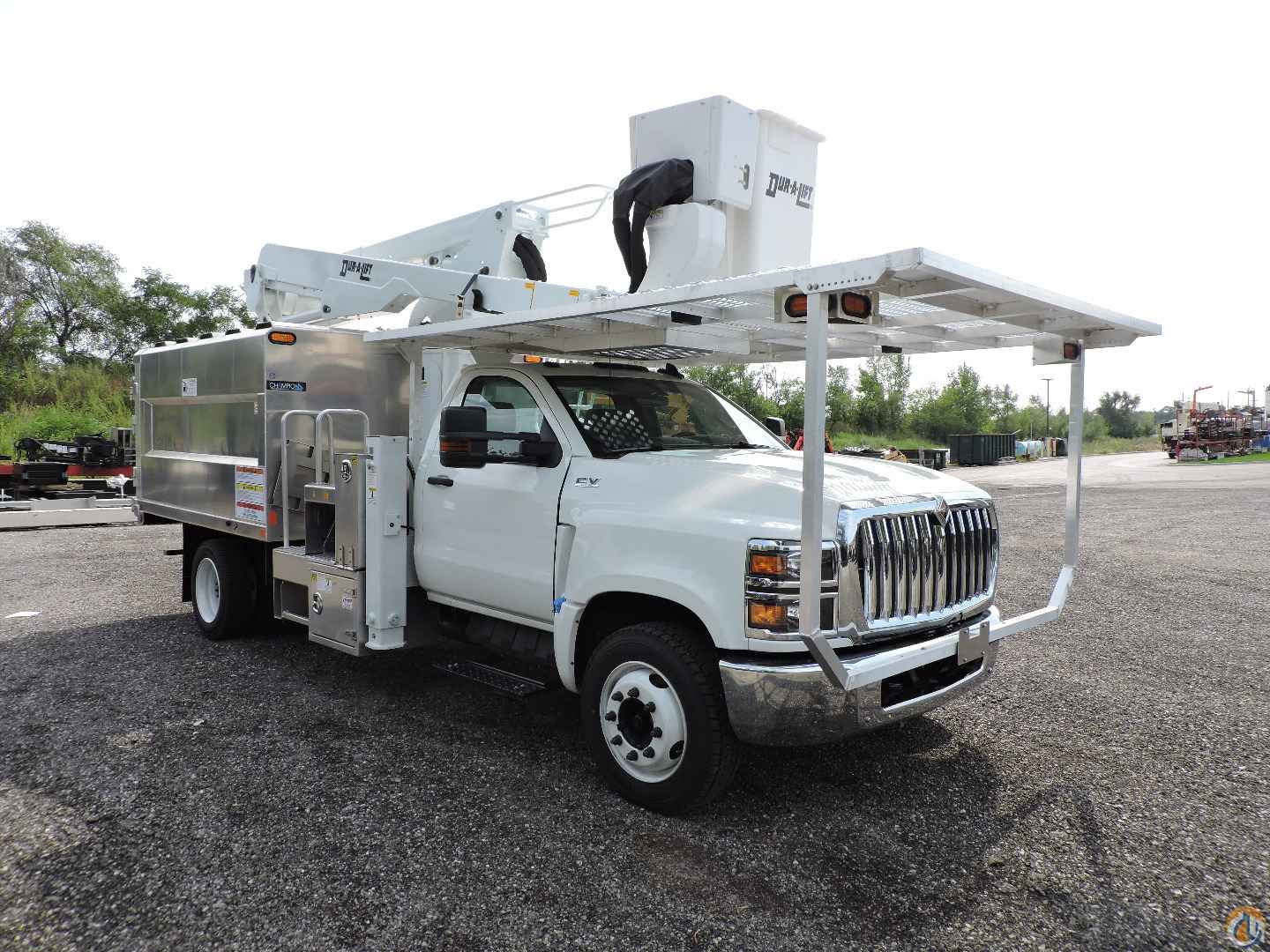

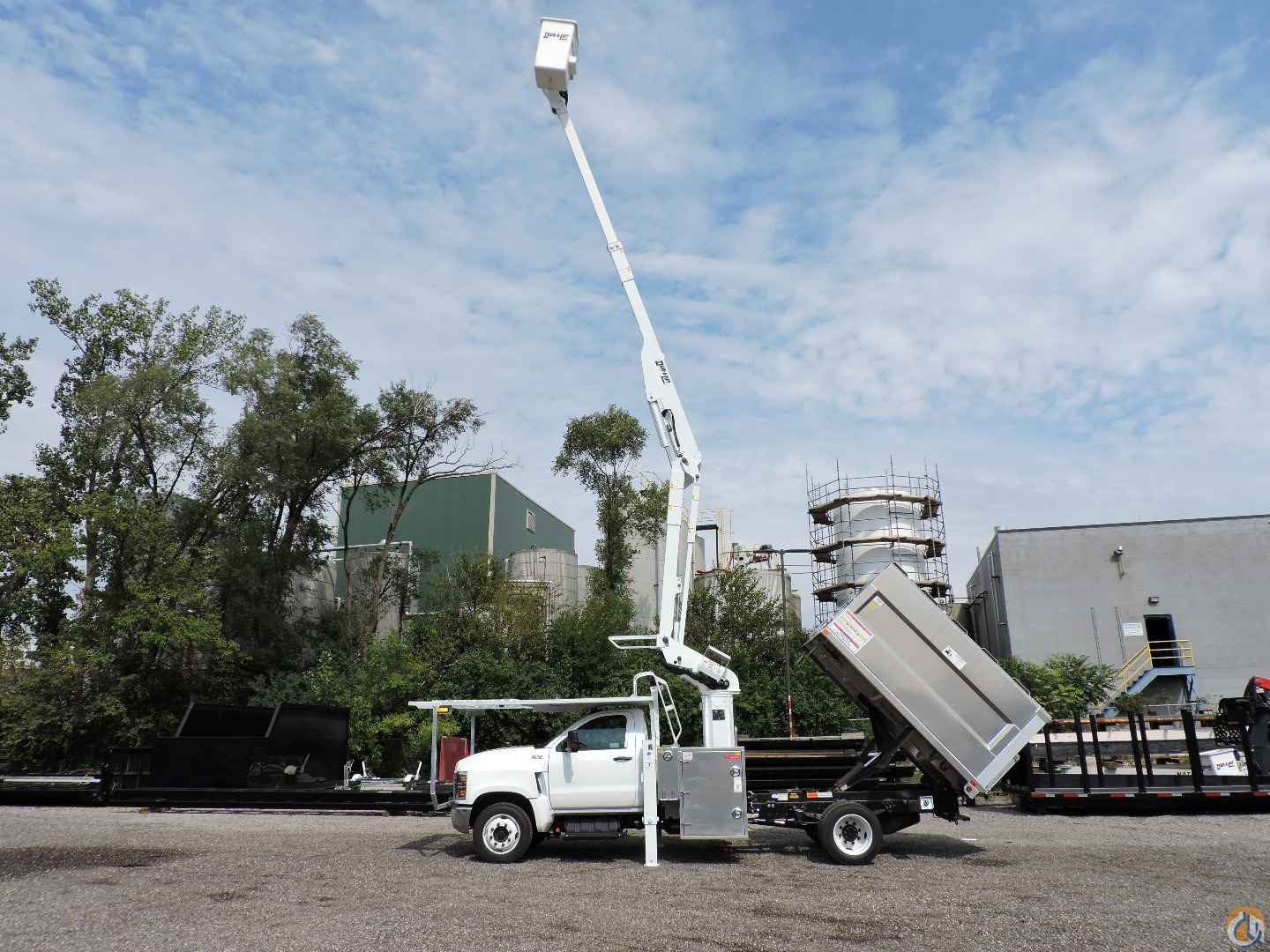

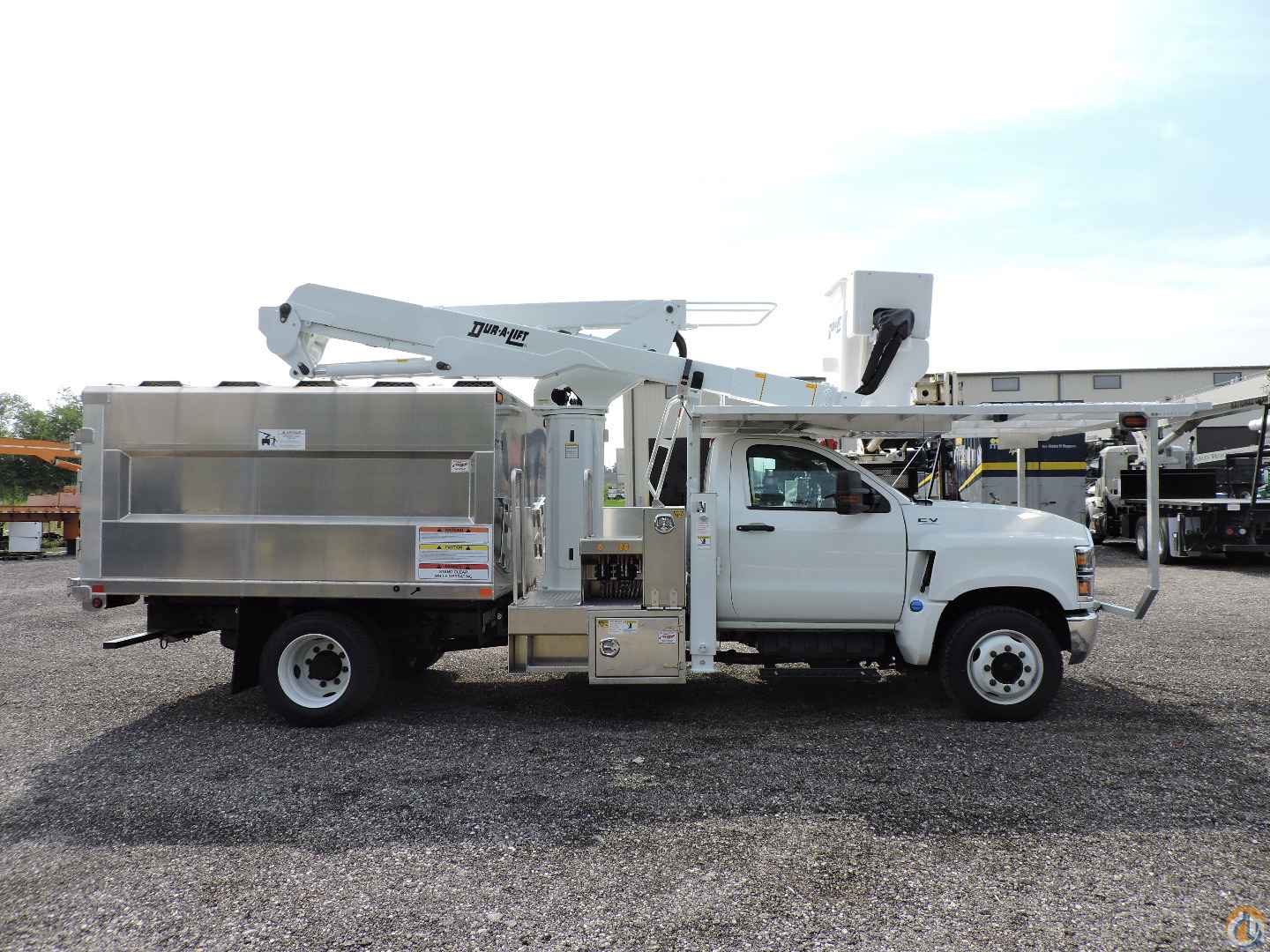

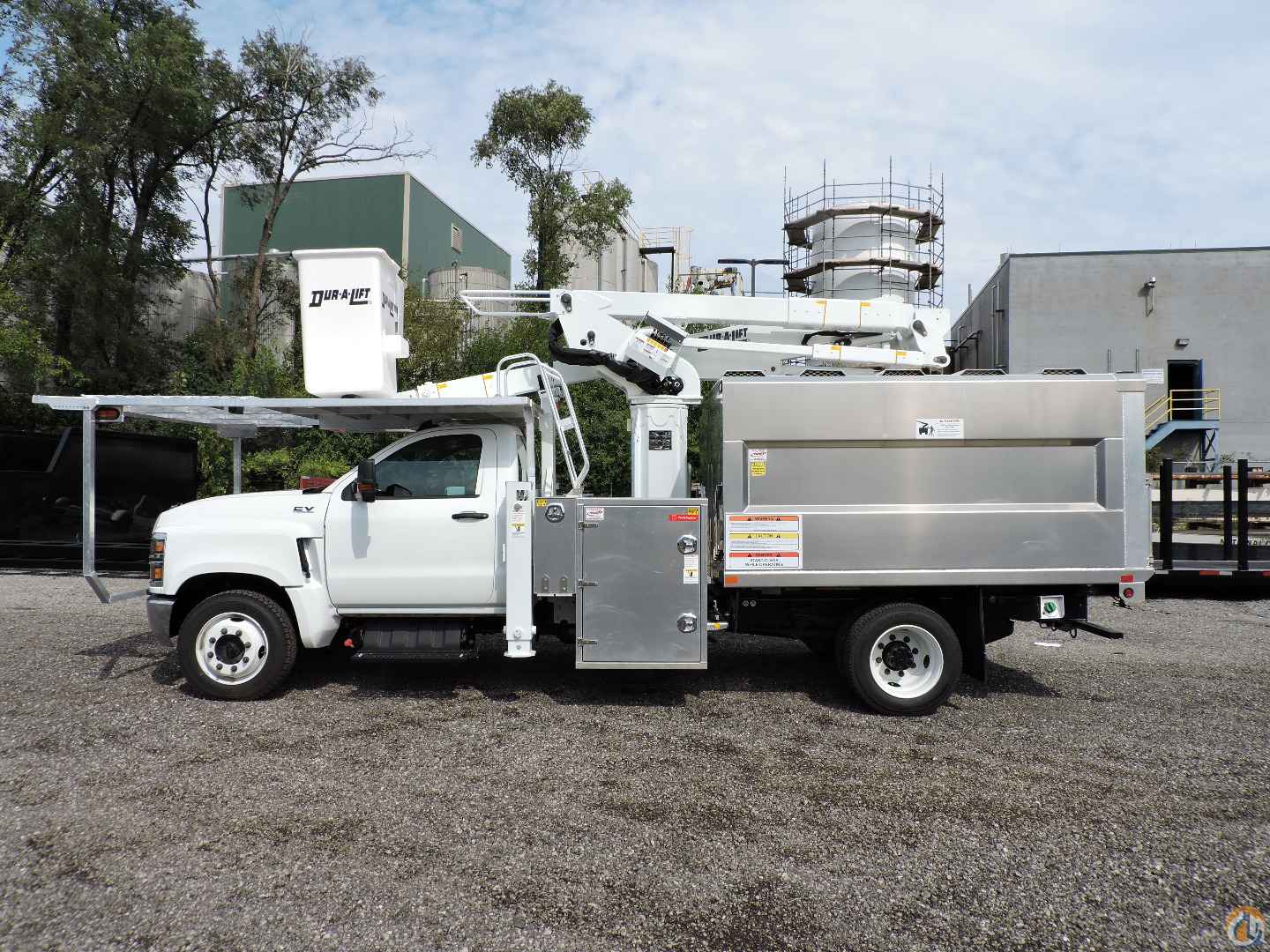

Dur-A-Lift DTAX2-45FP Urban Forestry equipped as follows:

- Category C insulated

- Main boom insert

- Articulating arm insert

- 50’ working height

- 30’ side reach

- Extension travel – 122.5”

- 24” x 24” x 42” basket with step, liner, clips, and cover

- Hydraulic tool circuit at basket

- 180-degree basket rotator

- 350 lb basket capacity

- Aluminum basket foot step

- Continuous rotation

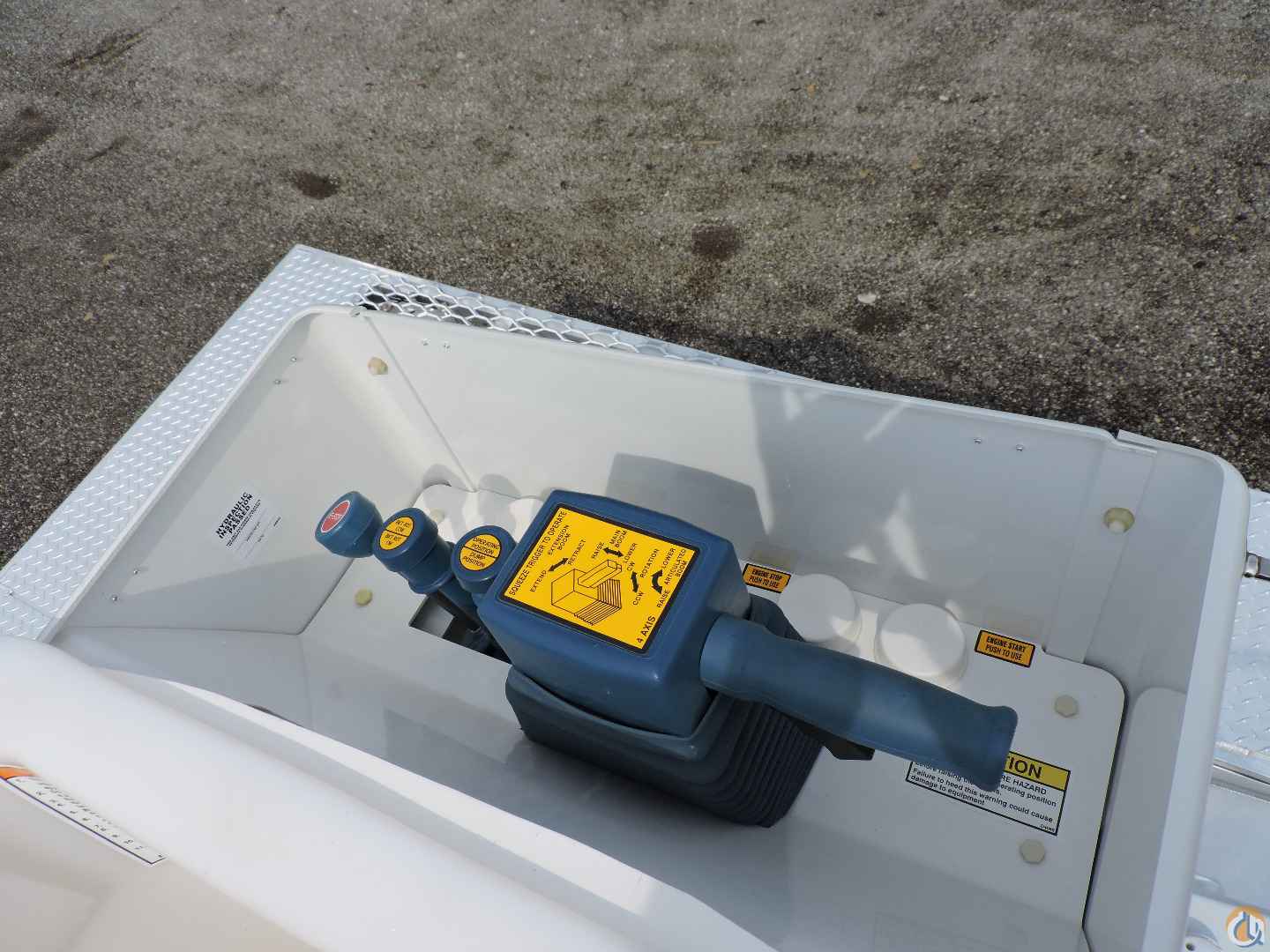

- Four-axis HERC single hand control

- Proportional controls

- Start/stop from the basket

- Lower controls with override located at the turntable

- DC backup pump

- H-style outriggers

- Single outrigger interlock

- Two 18”x18” composite outrigger pads with holders

- Aluminum cab guard with four LED oval warning lights

- One boom warning light

- Two flat LED prog, strobe, lights installed on tailshelf

- Backup alarm

- Triangle reflector kit

- 10 lb fire extinguisher

- Adjustable ladder

- Inclinometer

- 2” combo pintle/ ball hitch, receiver style

- 7 pin spade trailer plug

- 2” pintle ball/hitch

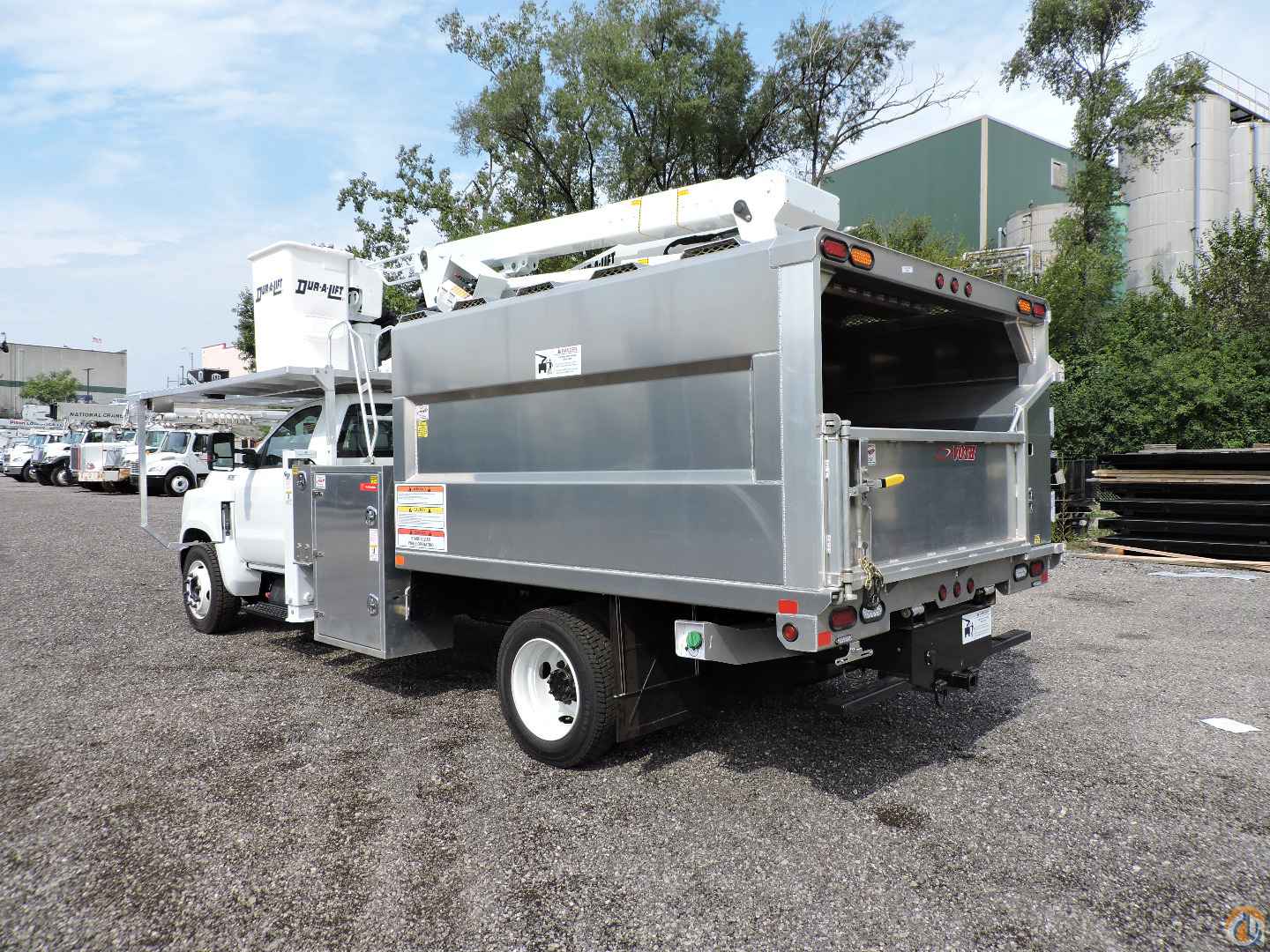

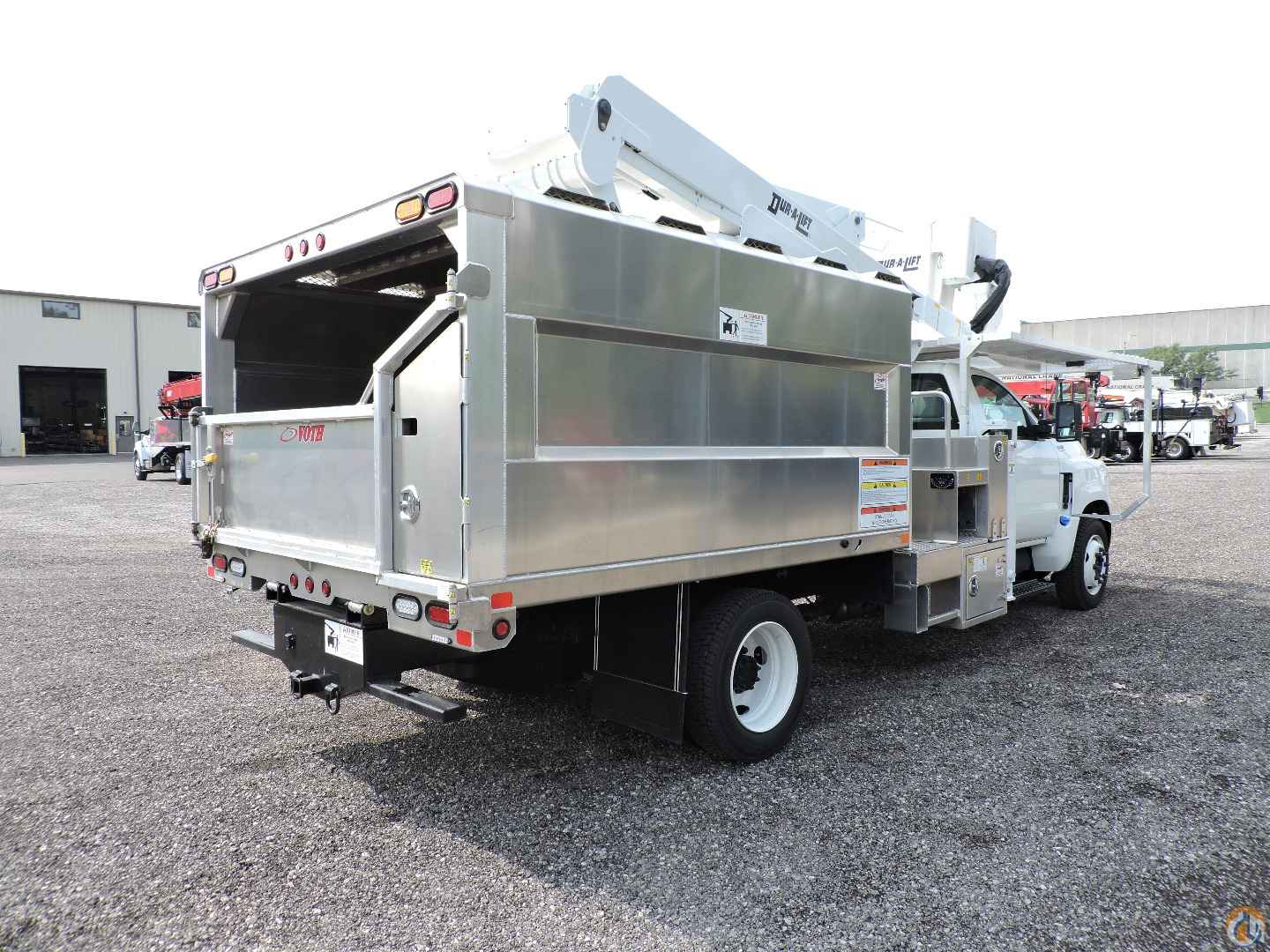

Voth Deep Urban Forestry equipped as follows:

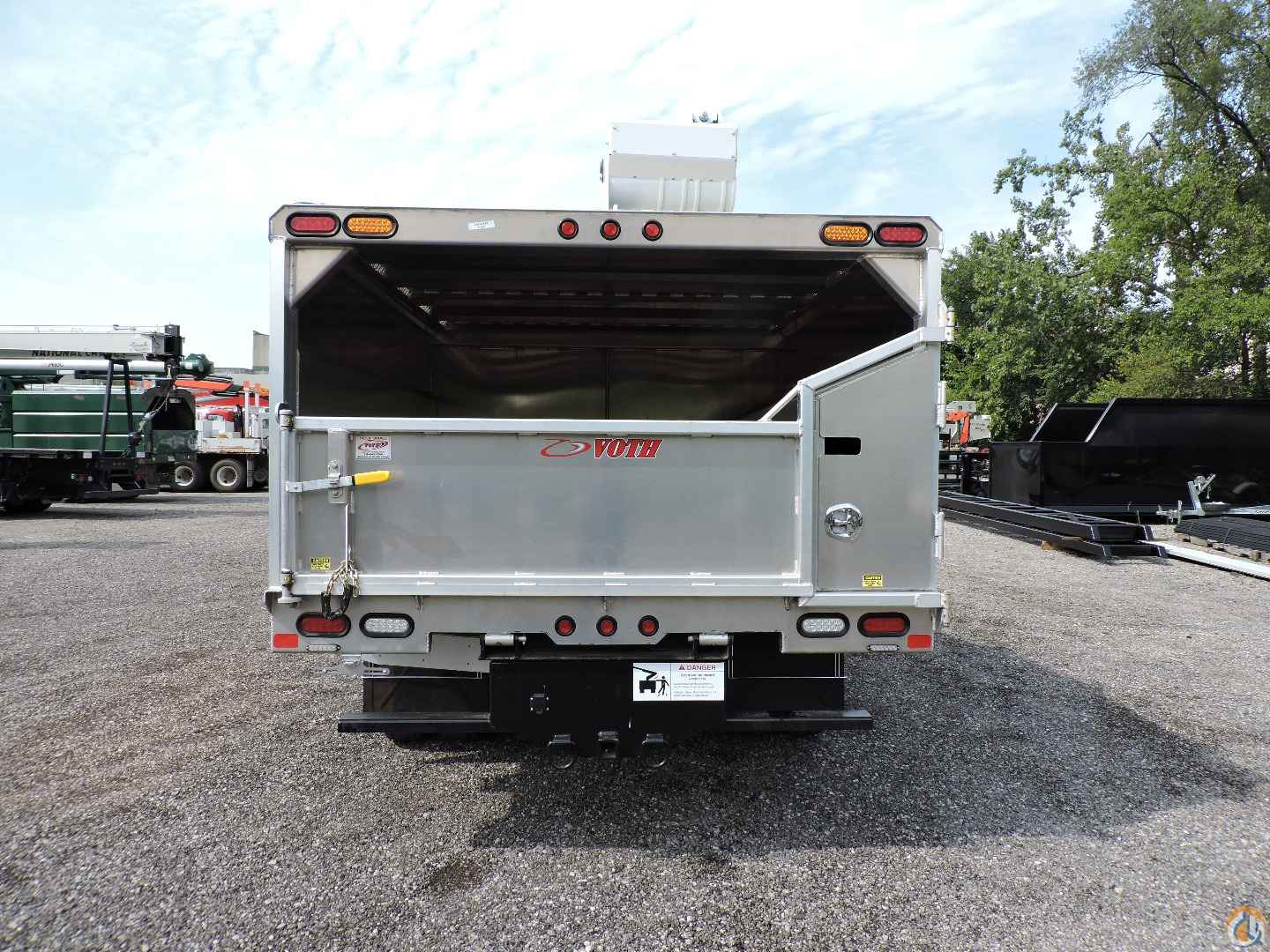

- 9’9” Voth aluminum dumping chipper body, 54” full sides

- 15-ton Champion scissor lift

- 24” H rear barn door

- Pruner compartment

- Two (2) toolboxes

- SS – 36” L x 47” H x 20” D

- CS – 26” L x 20” H x 22” D

- One (1) crossbody box – 96” L x 26.25” H x 11.5” D

MOUNTED ON:

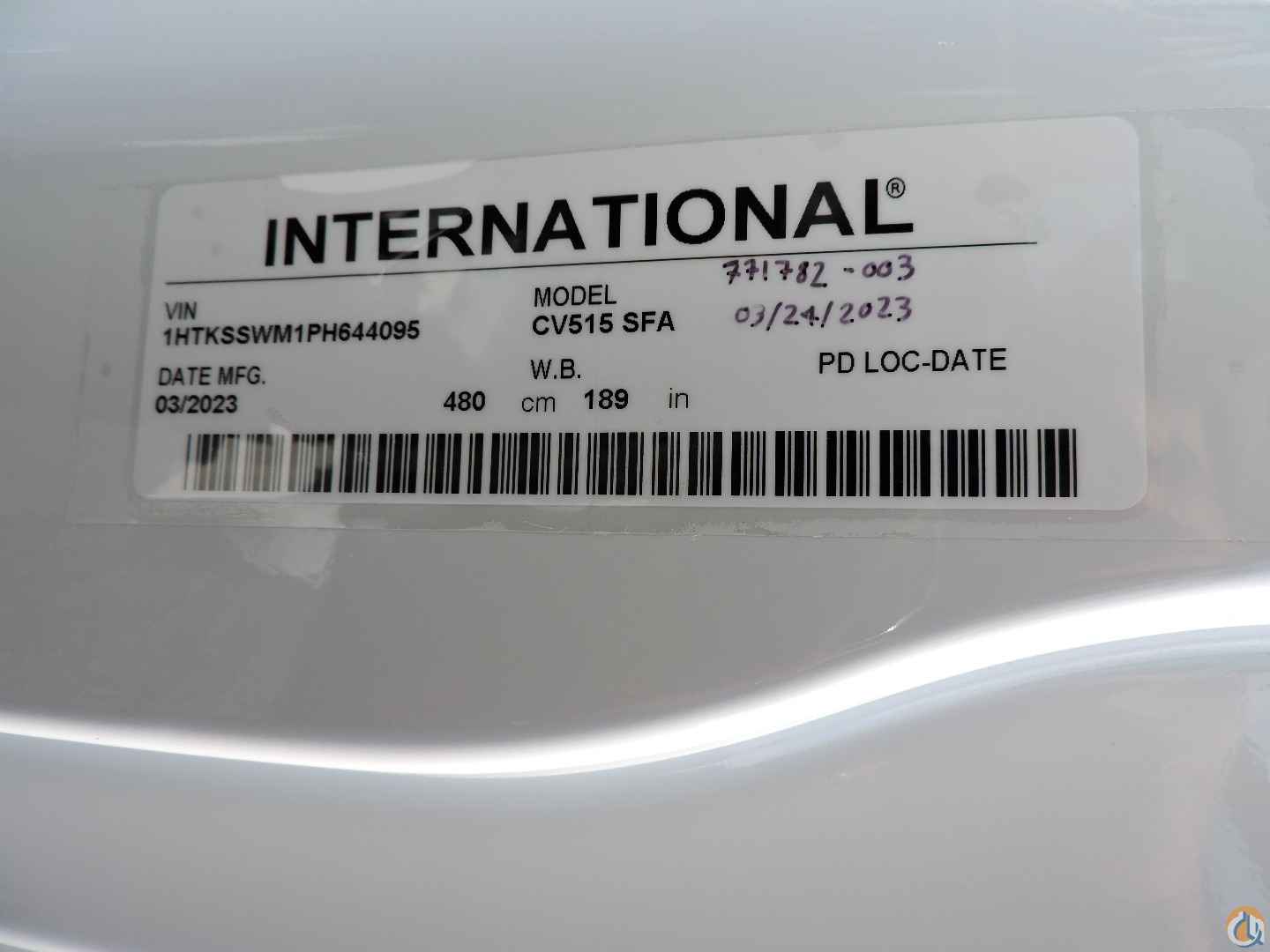

2022 International CV515 4x2 equipped as follows:

- 23,000 lb GVWR

- International 6.6 V8 Turbocharged diesel – 350hp @ 2700 RPM, 700 lb/ft torque @ 1600 RPM

- Engine block heater

- Allison 6-speed transmission

- 8,000 lb front axle

- 15,500 lb rear axle

- 189.00” wheelbase

- 225/70R19.5 tires

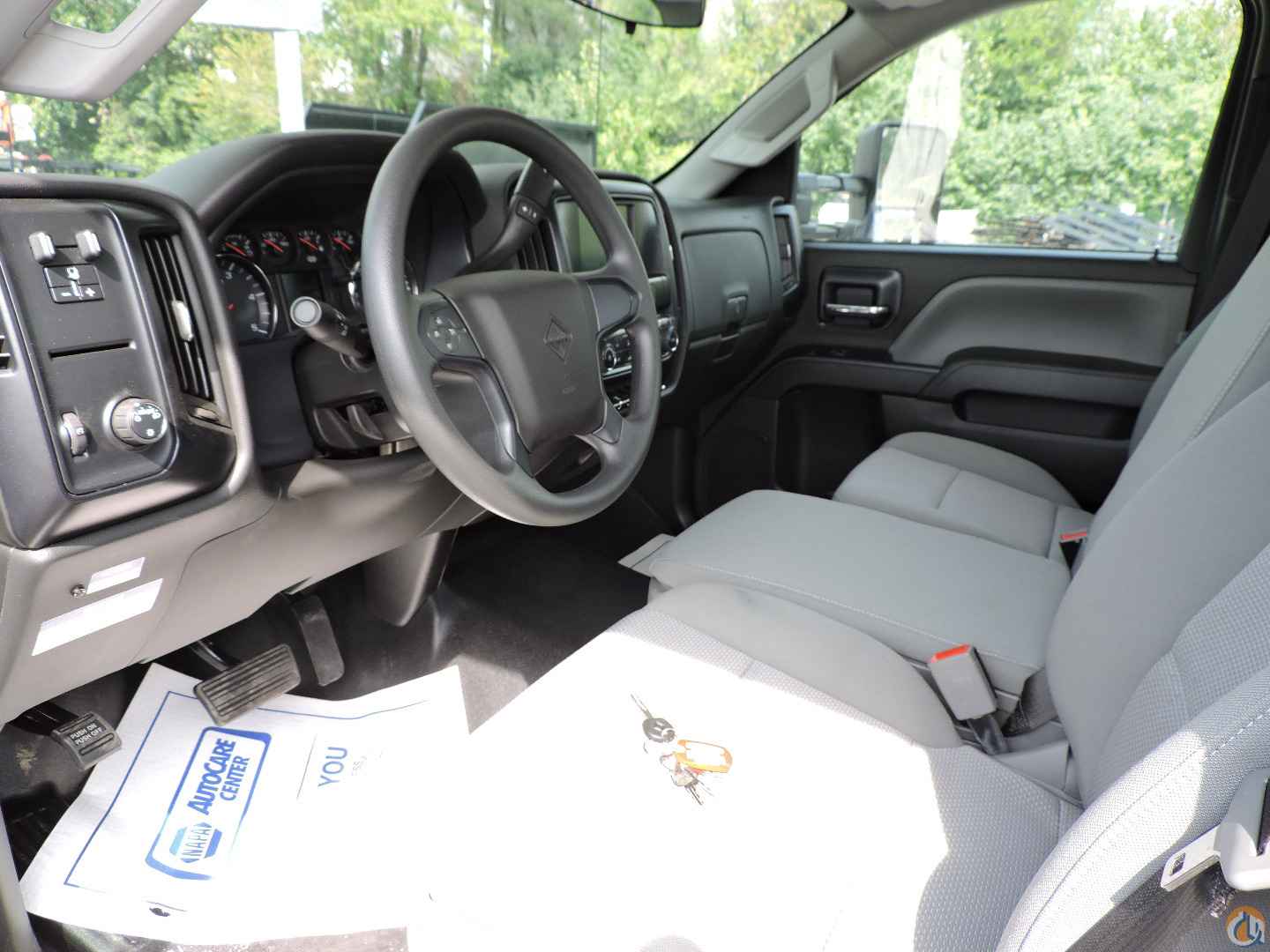

- Tilting steering column

- AM/FM/Bluetooth radio with 7” color touch panel display

- Power locks and windows

- High back driver’s seat, cloth

- High back, two-man passenger seat, cloth

- Air conditioner

- Chrome grille and bumper

- Paint: Winter white
