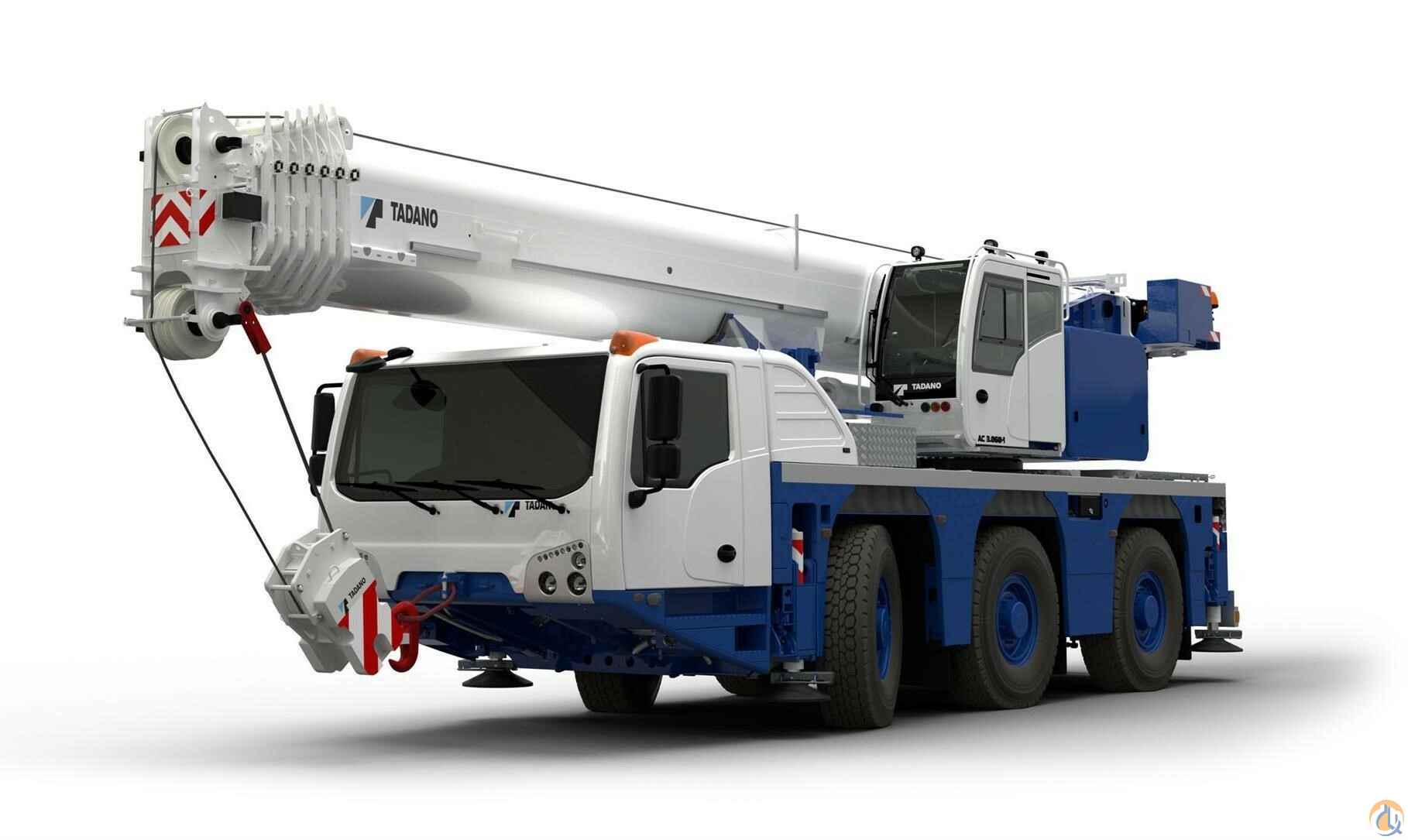

The AC 3.060-1 combines compact flexibility, high transportability, and ease-of-use with the world’s longest telescopic boom on a fully roadable, 3-axle all terrain crane. The single cylinder telescoping system reaches 50m with an optional extension increasing that reach to 66m, outperforming all other cranes in its class. The automatic counterweight rigging system enables quick and easy setup, even via remote control outside the superstructure cab. Flex Base with stepless outrigger positioning grants outstanding versatility and performance. The AC 3.060-1 blends Tadano’s noted reliability with efficiency, as everything aboard this machine can be handled by just one person.
MAX. CRANE CAPACITY: 65 USt
MAIN BOOM LENGTH: 34.1 ft – 164.0 ft
BOOM EXTENSION: 4.9 ft / 29.5 ft – 52.5 ft
MAX. TIP HEIGHT: 223.0 ft
MAX. COUNTERWEIGHT: 26,600 lbs
OUTRIGGER BASES: 22.8 ft x 21.4 ft
HOIST LINE PULL:15,040 lbs
MAX RADIUS: 144.3 ft
MAX. MAIN BOOM LENGTH: 164.0 ft
DIMENSIONS: L: 38.2 ft W: 8.3 ft H: 12.0 ft
AXLES: 3
ENGINE: Mercedes-Benz
DRIVE: 6 x 4 x 6 (6 x 6 x 6)
Call Empire Crane today for a quote.
