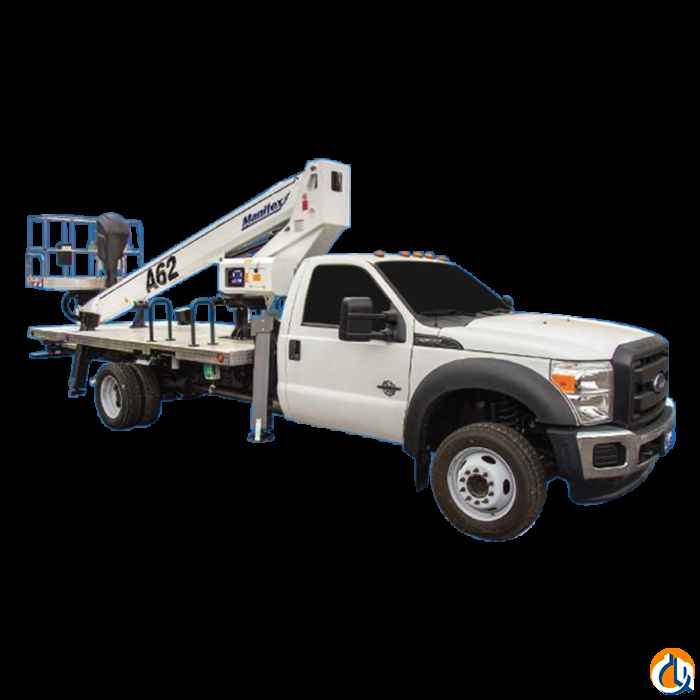

BASE FRAME Steel tubes bolted to truck’s chassis. Equipped with 4 vertical stabilizer feet mounted on the body with direct deployment. An outrigger monitoring system is provided. ROTATING TURRET The turret is made of high yield steel and rotates on ball bearings. It is activated by means of an electric orbital motor. The turret provides 700° of non-continuous rotation (+/- 350°). BOOM The three section boom is telescopic with hydraulic extensions and provides a working height of 62 feet. It is made of die-formed and welded high strength steel sheet. The boom has a horizontal operating range of -15° and + 75 °. OPERATOR BASKET Two man aluminum operator basket 67” x 27.5” x 43”. 550 lbs. maximum capacity. The safety belt fasteners inside the basket are secured to the aluminum reinforcement. A foot operated safety pedal must be engaged in order to move the boom or basket. The basket rotates 180° (90° Left + 90° Right). CONTROLS Equipment features a compensated proportional hydraulic control system that can control several maneuvers at the same time. Upper structure: controls available from two panels: – On column, protected by metal guards and reachable through locked doors. These controls are output through the manually-activated parallel one-piece distributor. – In basket, protected by fixed thermoformed guards. These are the manually-activated hydraulic controls, truck starting and stop push button and the mushroom-head emergency push-button self-retained in active position.
